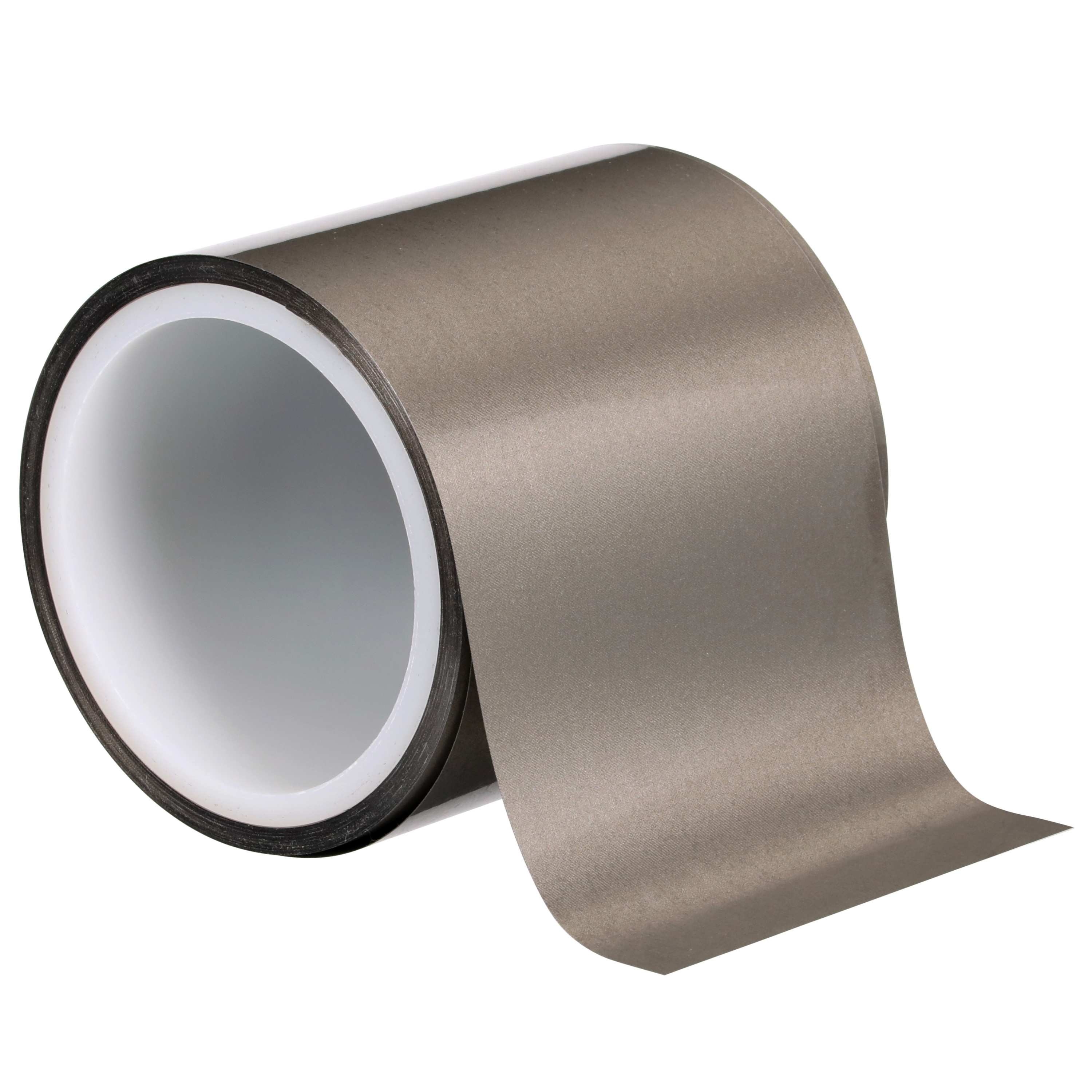

3M™ Electrically Conductive Single-Sided Tape 5113SFT-50, Grey, 25 mm x 10 m, 12 Rolls/Case
$17.89 / Roll
| SKU | 7100313609 |
|---|---|
| Legacy SKU | 80001605239 |
| UPC | 00068060428295 |
| Catalog Number | 5113SFT-50 |
| Product Number | 5113SFT |
3M Electrically Conductive Single-Sided Tape 5113SFT is an electrically conductive single-sided fabric tape (SFT) that provides high adhesion, low electrical resistance, long shelf life, resistance to high temperature and humidity and excellent grounding and shielding performance. It features a proprietary polyolefin XYZ-axis conductive pressure sensitive adhesive (CPSA) and a conductive matrix carrier (a nickel/copper/nickel-coated conductive woven carrier). This grounding tape provides excellent adhesion
- Isotropic XYZ-axis conductivity through the adhesive
- Excellent grounding with small contact areas for microelectronics
- High adhesion for reliable electrical contact to many substrates including select low-surface-energy substrates
- Excellent EMI shielding in bond line gap
- Four-year shelf life for reliable, consistent performance over time
- Long-term performance at high temperatures (105 ˚C) for demanding applications
Product Dimensions |
Imperial | Metric |
| Weight | 0 NULL | |
|---|---|---|
| Width | 0 null | |
| Length | 0 null | |
| Height | 0 null |
Shipping Dimensions |
|
| Weight | 1.67595 lb |
|---|---|
| Length | 7.00787 in |
| Width | 7.00787 in |
| Height | 5 in |
PRODUCT FAQ
-
Of course! I'd be happy to help.
What are the main features of the 3M™ Electrically Conductive Single-Sided Tape 5113SFT-50?
-
The tape is electrically conductive, single-sided, and comes in a grey color. It measures 25 mm wide and each roll is 10 meters long. Each case includes 12 rolls.
Can this tape be easily applied by hand?
-
Yes, the tape is designed for easy application by hand. Simply peel off the backing and adhere it to your desired surface.
Is this tape suitable for outdoor use or harsh environments?
-
This tape has good resistance to outdoor exposure as well as high heat and humidity, making it suitable for various environments.
How strong is the adhesive on this conductive tape?
-
The adhesive on this tape provides strong bonding power and excellent conductivity when applied correctly.
; Can this conductive tape be used in electronic applications?
-
; Absolutely! It's specially designed for electrical grounding, EMI shielding, and other electronic applications where conductivity is needed.
The 3M™ Electrically Conductive Single-Sided Tape 5113SFT-50 is a high-quality adhesive tape designed to provide excellent electrical conductivity in various applications. With a grey color and a width of 25 mm, this tape comes in a convenient 10 m length and is sold in a case containing 12 rolls. It is a reliable solution for bonding and grounding electronic components, shielding against electromagnetic interference (EMI), and dissipating static charges.
This electrically conductive tape features a conductive adhesive on one side, allowing it to establish a secure electrical connection between surfaces. The adhesive is highly conductive, ensuring efficient current flow and minimizing resistance. The tape is also flexible and conformable, making it easy to apply to irregular surfaces and ensuring a reliable bond even in challenging environments.
Manufactured by 3M, a trusted leader in adhesive technology, this electrically conductive tape is made with high-quality materials to ensure durability and long-lasting performance. It is suitable for a wide range of applications, including electronics manufacturing, automotive assembly, medical device assembly, and more. With its excellent electrical conductivity and reliable adhesive properties, the 3M™ Electrically Conductive Single-Sided Tape 5113SFT-50 is an essential tool for professionals seeking efficient and effective bonding solutions.
