3M™ Thin-Wall Heat Shrink Tubing EPS-300, Adhesive-Lined, 1/2-Black-48", 75/Case

3M™

$6.40 / Each

SKU 7000133616
Legacy SKU 80611601818
UPC 00051128599204
Catalog Number E30.500BK48"L
Product Number E30.500BK48"L

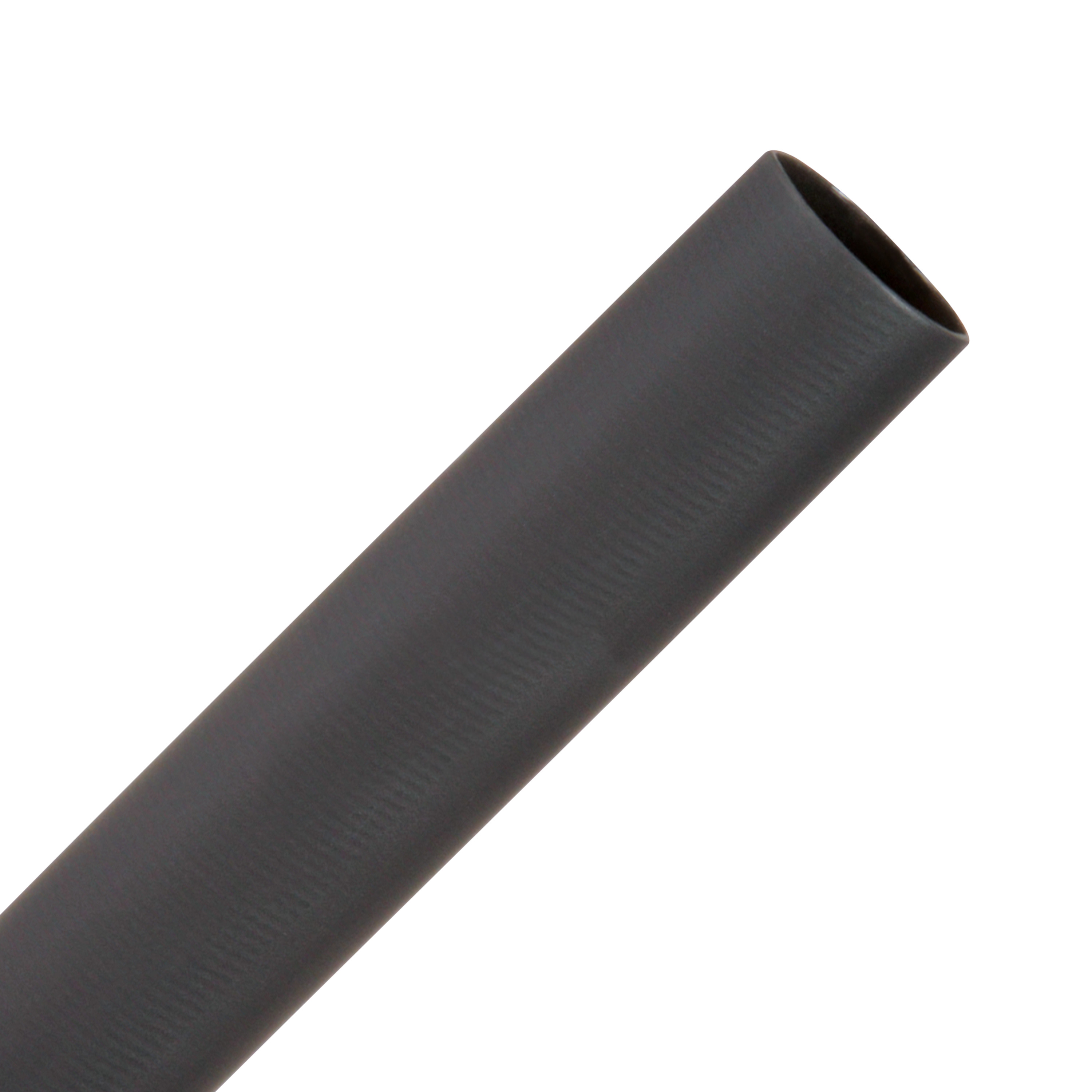

3M Heat Shrink Tubing EPS-300 is a dual wall tubing provides the advantage of an integral, adhesive lined construction. This flame retardant tubing with a 3:1 shrink ratio offers insulation for 600V rated applications. The flexible polyolefin construction features an internal layer of thermoplastic adhesive, which offers moisture seal protection in automotive and marine applications.

  • SHRINK RATIO: Offers a 3:1 shrink ratio; when freely recovered, the tubing will shrink 33% of its as-supplied diameter
  • DUAL-WALL DESIGN: A durable, flexible polyolefin outer wall resists abrasions while a meltable inner wall keeps out moisture
  • A VERSATILE OPTION: Flame-retardant, water-resistant, and rated for 600 V applications
  • OPERATING RANGE: This tubing functions in a temperature range of -55–110 ºC (-67–230 ºF), with a shrinking temperature minimum of 121 ºC (250 ºF)
  • IDEAL FOR A VARIETY OF APPLICATIONS: Offers protection for automotive, truck, electronic components, wire splices, wire bundles, and harness breakouts
  • CERTIFICATIONS: UL Listed, CSA Certified, and RoHS 2011/65/EU Compliant
  Add to cart
On it's way to you December 20

Qty

Minimum Order 75 Items
Order Increment 75 Items
  Immense Durability
  Superior Seal Protection
  Global Shipping
  Fantastic Price
Product Dimensions
 Imperial Metric
Weight 0 NULL
Width 0 null
Length 0 null
Height 0 null
Shipping Dimensions
Weight 8.78101 lb
Length 51.01969 in
Width 6.45984 in
Height 6.37992 in
Color Black

PRODUCT FAQ

  1. What is 3M Thin-Wall Heat Shrink Tubing EPS-300?

    3M Thin-Wall Heat Shrink Tubing EPS-300 is a heat-shrinkable tubing made of radiation cross-linked polyolefin, designed to provide excellent protection for electrical joints and connections.

  2. How does the adhesive lining of the tubing work?

    The lining has a dual-wall design that provides both insulation and sealing. It melts and flows when heated, creating a moisture-resistant barrier around your connection or joint.

  3. Can you tell me more about the size of this specific product?

    This particular product comes in black color, with an inner diameter of half an inch (12.7 mm), shrinking down to a quarter-inch (6.4mm) when heated. Each piece measures 48 inches (122cm) long before being shrunk.

  4. How many pieces are there in each case of 3M Thin-Wall Heat Shrink Tubing EPS-300?

    There are seventy-five pieces or length units included in one standard case unit of this product.

For industrial/occupational use only. Not for consumer sale or use.
3M industrial and occupational products are intended, labeled, and packaged for sale to trained industrial and occupational customers for workplace use.  Unless specifically stated otherwise on the applicable product packaging or literature, these products are not intended, labeled, or packaged for sale to or use by consumers (e.g., for home, personal, primary or secondary school, recreational/sporting, or other uses not described in the applicable product packaging or literature), and must be selected and used in compliance with applicable health and safety regulations and standards (e.g., U.S. OSHA, ANSI), as well as all product literature, user instructions, warnings, and other limitations, and the user must take any action required under any recall, field action, or other product use notice.  Misuse of 3M industrial and occupational products may result in injury, sickness, death, or property damage.  For help with product selection and use, consult your on-site safety professional, industrial hygienist, or other subject matter expert.

3M™ EPS-300 Heat Shrink Tubing has a dual-wall construction that makes it perfect for even the most demanding applications. This tubing is designed to withstand rigorous conditions and maintain its integrity.

When heated, the adhesive flows to seal the underlying components, providing excellent adhesion to keep it in place and offering outstanding resistance to moisture. This ensures that your components stay protected and secure, even in harsh environments.

The 3:1 shrink ratio and abrasion resistance make it ideal for wire bundles where strain-relief capabilities are an advantage. Additionally, it provides insulation for electrical applications rated at up to 600V. This makes it a versatile solution for a wide range of applications.

The tubing is operational within a wide temperature range, from -67 to 230 degrees F (-55 to 110 degrees C). This means that it can be used in both hot and cold environments without losing its effectiveness.

Finally, it's important to note that this tubing is UL Listed, CSA Certified and RoHS 2011/65/EU Compliant. This ensures that it meets the highest standards for safety and environmental responsibility.

  • Dual-wall construction for rigorous applications
  • Excellent adhesion and resistance to moisture
  • 3:1 shrink ratio and abrasion resistance for wire bundles
  • Insulation for electrical applications rated at up to 600V
  • Operational within a wide temperature range
  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
