SKU | 7000133585 |
---|---|
Legacy SKU | 80611473945 |
UPC | 00051128597330 |
Catalog Number | E31.000BK48"S |
Product Number | E31.000BK48"S |

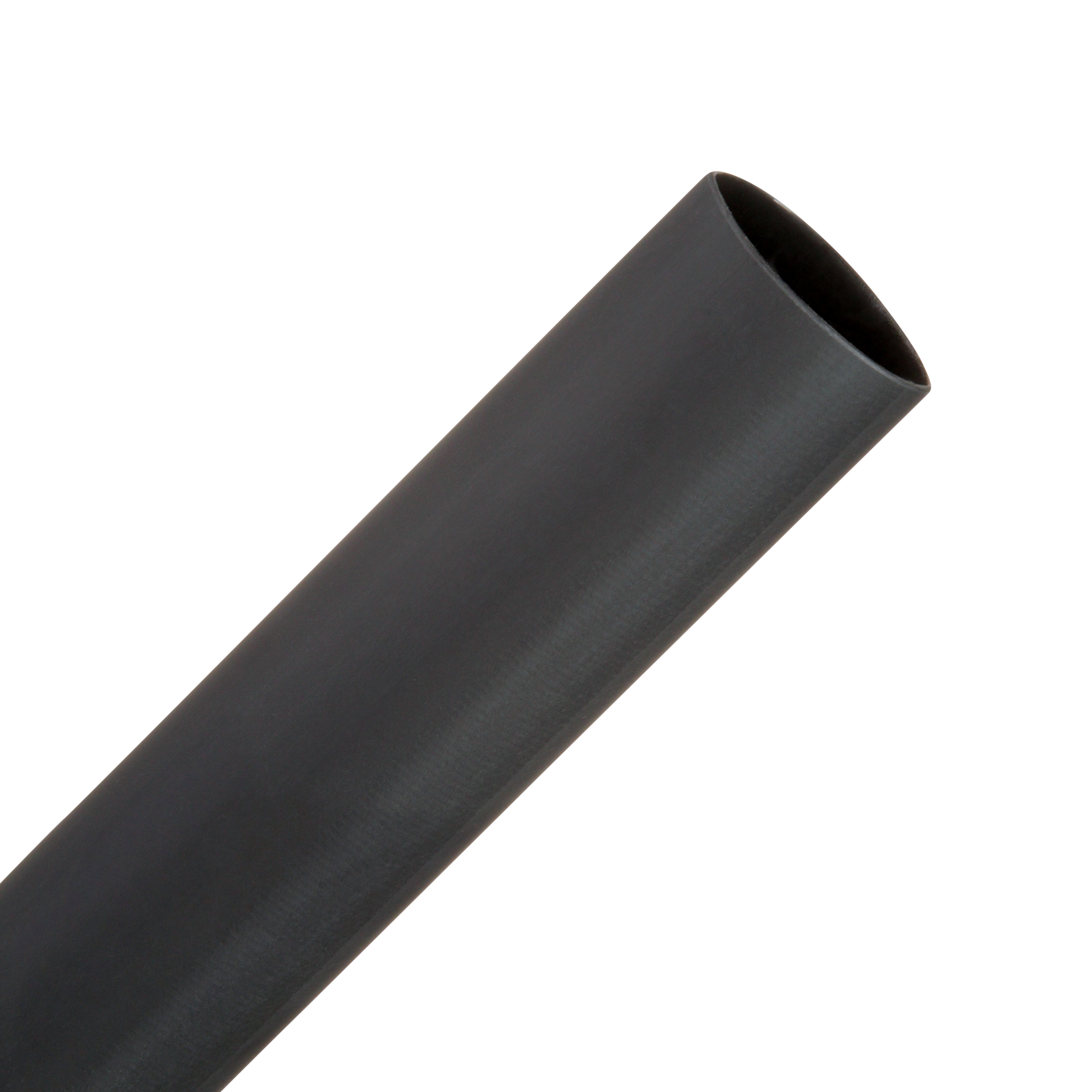

3M Heat Shrink Tubing EPS-300 is a dual wall tubing provides the advantage of an integral, adhesive lined construction. This flame retardant tubing with a 3:1 shrink ratio offers insulation for 600V rated applications. The flexible polyolefin construction features an internal layer of thermoplastic adhesive, which offers moisture seal protection in automotive and marine applications.
- SHRINK RATIO: Offers a 3:1 shrink ratio; when freely recovered, the tubing will shrink 33% of its as-supplied diameter
- DUAL-WALL DESIGN: A durable, flexible polyolefin outer wall resists abrasions while a meltable inner wall keeps out moisture
- A VERSATILE OPTION: Flame-retardant, water-resistant, and rated for 600 V applications
- OPERATING RANGE: This tubing functions in a temperature range of -55–110 ºC (-67–230 ºF), with a shrinking temperature minimum of 121 ºC (250 ºF)
- IDEAL FOR A VARIETY OF APPLICATIONS: Offers protection for automotive, truck, electronic components, wire splices, wire bundles, and harness breakouts
- CERTIFICATIONS: UL Listed, CSA Certified, and RoHS 2011/65/EU Compliant
Product Dimensions |
Imperial | Metric |
Weight | 0 NULL | |
---|---|---|
Width | 0 null | |
Length | 0 null | |
Height | 0 null |
Shipping Dimensions |
|
Weight | 1.9 lb |
---|---|
Length | 51.1252 in |
Width | 3.3752 in |
Height | 3.3752 in |
Color | Black |
---|
PRODUCT FAQ
-
What is the shrink ratio of the 3M™ Thin-Wall Heat Shrink Tubing EPS-300, Adhesive-Lined?
The shrink ratio of our thin-wall heat shrink tubing is 2:1.
-
Can I use this tubing for waterproofing purposes?
Yes, absolutely! Our adhesive-lined heat shrink tubing provides an excellent barrier against water and moisture.
-
How many pieces come in a single case of the 3M™ Thin-Wall Heat Shrink Tubing EPS-300, Adhesive-Lined, 1-48"-Black-5 Pcs?
Each case comes with five (5) 48 inch long sticks of black adhesive-lined heat shrink tubing.
3M™ Heat Shrink Tubing EPS-300 is designed to provide a tight fit and protection for electronic components, wire splices, wire bundles, and harness breakouts. The tubing is color coded for easy identification of wires and is flame retardant. The outer wall of the tubing is heat shrinkable and irradiation cross-linked for abrasion resistance. This helps to maintain high flow and good adhesion characteristics. Once cooled, the tubing forms a permanent, water-resistant barrier. It can withstand a wide temperature range of 67 to 230 degrees F (55 to 110 degrees C). The tubing is UL Listed, CSA Certified, and RoHS 2011/65/EU Compliant.
- Provides a skintight fit and strain relief protection
- Color coded for quick and easy identification of wires
- Flame retardant
- Heat shrinkable outer wall is irradiation cross-linked for abrasion resistance
- Forms a permanent, water-resistant barrier
- Can withstand a wide temperature range of 67 to 230 degrees F (55 to 110 degrees C)
- UL Listed, CSA Certified, and RoHS 2011/65/EU Compliant
