SKU | 7000133583 |
---|---|
Legacy SKU | 80611473929 |
UPC | 00051128597316 |
Catalog Number | E30.500BK48"S |
Product Number | E30.500BK48"S |

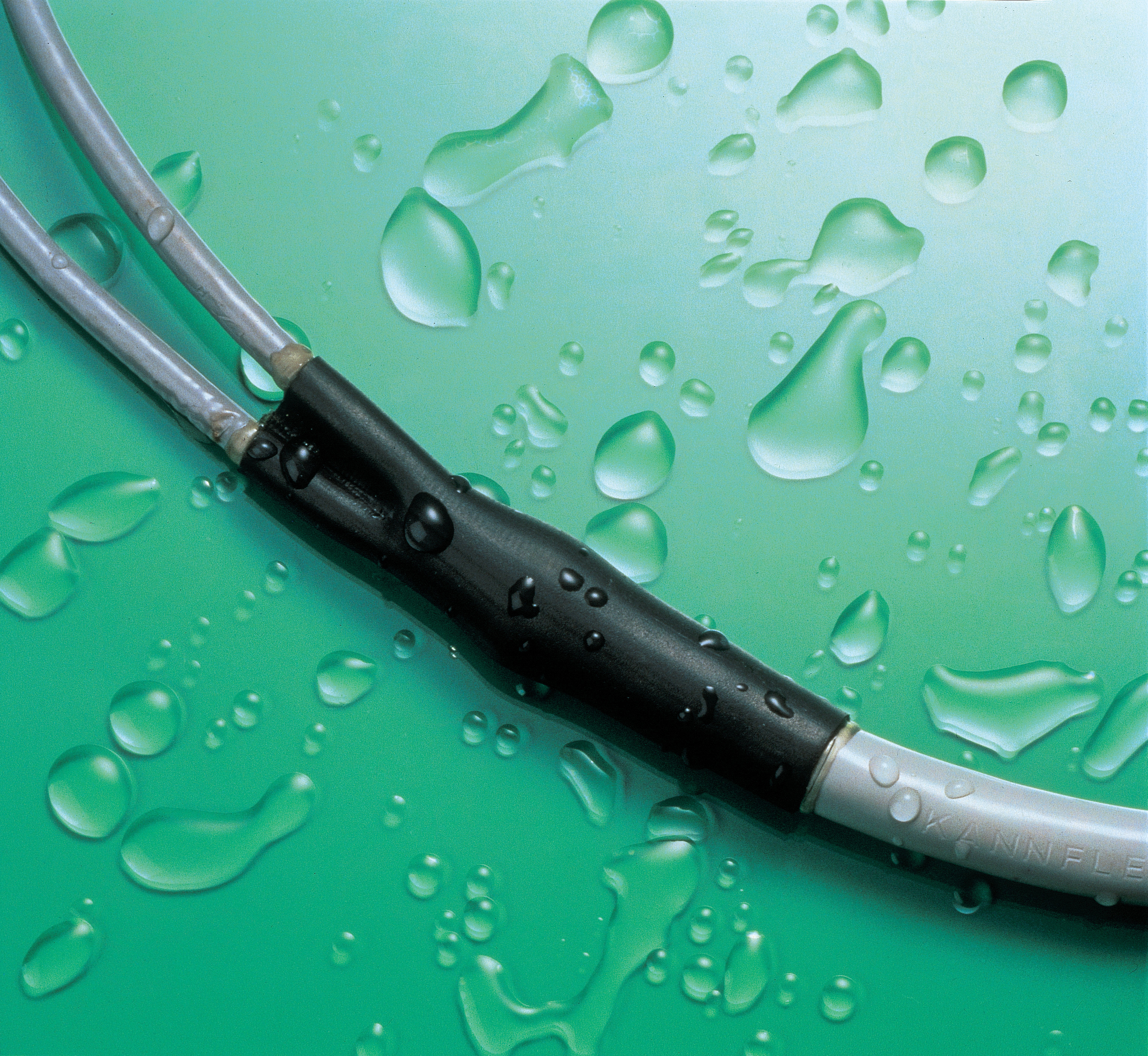

3M Heat Shrink Tubing EPS-300 is a dual wall tubing provides the advantage of an integral, adhesive lined construction. This flame retardant tubing with a 3:1 shrink ratio offers insulation for 600V rated applications. The flexible polyolefin construction features an internal layer of thermoplastic adhesive, which offers moisture seal protection in automotive and marine applications.
- INTEGRAL CONSTRUCTION: 3:1 thin-wall, flexible tubing offering the advantages of integral, adhesive-lined construction
- OFFERS COMPREHENSIVE PROTECTION: For automotive, truck, electronic components, wire splices, wire bundles and harness breakouts
- FLAME-RETARDANT TUBING: Made from flame-retardant, flexible polyolefin with an internal layer of special thermoplastic adhesive
- OPERATING TEMPERATURE: Range from -55 °C (-67 °F) to 110 °C (230 °F), with a shrinking temperature minimum of 121 °C (250 °F)
- COMPLIANCE: UL and CSA Reacognized, RoHS Compliant
- CERTIFICATIONS: UL Listed, CSA Certified, and RoHS 2011/65/EU Compliant
Product Dimensions |
Imperial | Metric |
Weight | 0 NULL | |
---|---|---|
Width | 0 null | |
Length | 0 null | |
Height | 0 null |
Shipping Dimensions |
|
Weight | 1.75 lb |
---|---|
Length | 51.1252 in |
Width | 3.3752 in |
Height | 3.3752 in |
Color | Black |
---|
PRODUCT FAQ
-
What is 3M™ Thin-Wall Heat Shrink Tubing EPS-300?
3M™ Thin-Wall Heat Shrink Tubing EPS-300 is a polyolefin heat shrink tubing that has an inner layer of adhesive coating to provide extra protection and insulation for wire joints, terminals, and connections.
-
What size and color options are available for this product?
This specific product comes in black with a diameter range of 1/2 inch. The length per roll is 48 inches. It also comes in case packs of 12.
-
How can I benefit from using this particular type of heat shrink tubing over others on the market?
This type of thin-wall heat shrink tubing offers superior resistance to fluids, solvents, and chemicals which makes it perfect for industrial applications such as automotive or electronics repairs. Additionally, the adhesive lining ensures a strong grip on the substrate while providing strain relief around terminations where sharp bends may occur.
3M™ Heat Shrink Tubing EPS-300 is designed to provide a tight fit and protection for electronic components, wire splices, wire bundles, and harness breakouts. The tubing is color coded for easy identification of wires and is flame retardant. The outer wall of the tubing is heat shrinkable and irradiation cross-linked for abrasion resistance. This helps to maintain high flow and good adhesion characteristics. Once cooled, the tubing forms a permanent, water-resistant barrier. It can withstand a wide temperature range of 67 to 230 degrees F (55 to 110 degrees C). The tubing is UL Listed, CSA Certified, and RoHS 2011/65/EU Compliant.
- Provides a skintight fit and strain relief protection
- Color coded for quick and easy identification of wires
- Flame retardant
- Heat shrinkable outer wall is irradiation cross-linked for abrasion resistance
- Forms a permanent, water-resistant barrier
- Can withstand a wide temperature range of 67 to 230 degrees F (55 to 110 degrees C)
- UL Listed, CSA Certified, and RoHS 2011/65/EU Compliant
