SKU | 7000132182 |
---|---|
Legacy SKU | 80018002651 |
UPC | 00054007275510 |
Catalog Number | 1181-1/2"X18YD |
Product Number | 1181-1/2"X18YD |

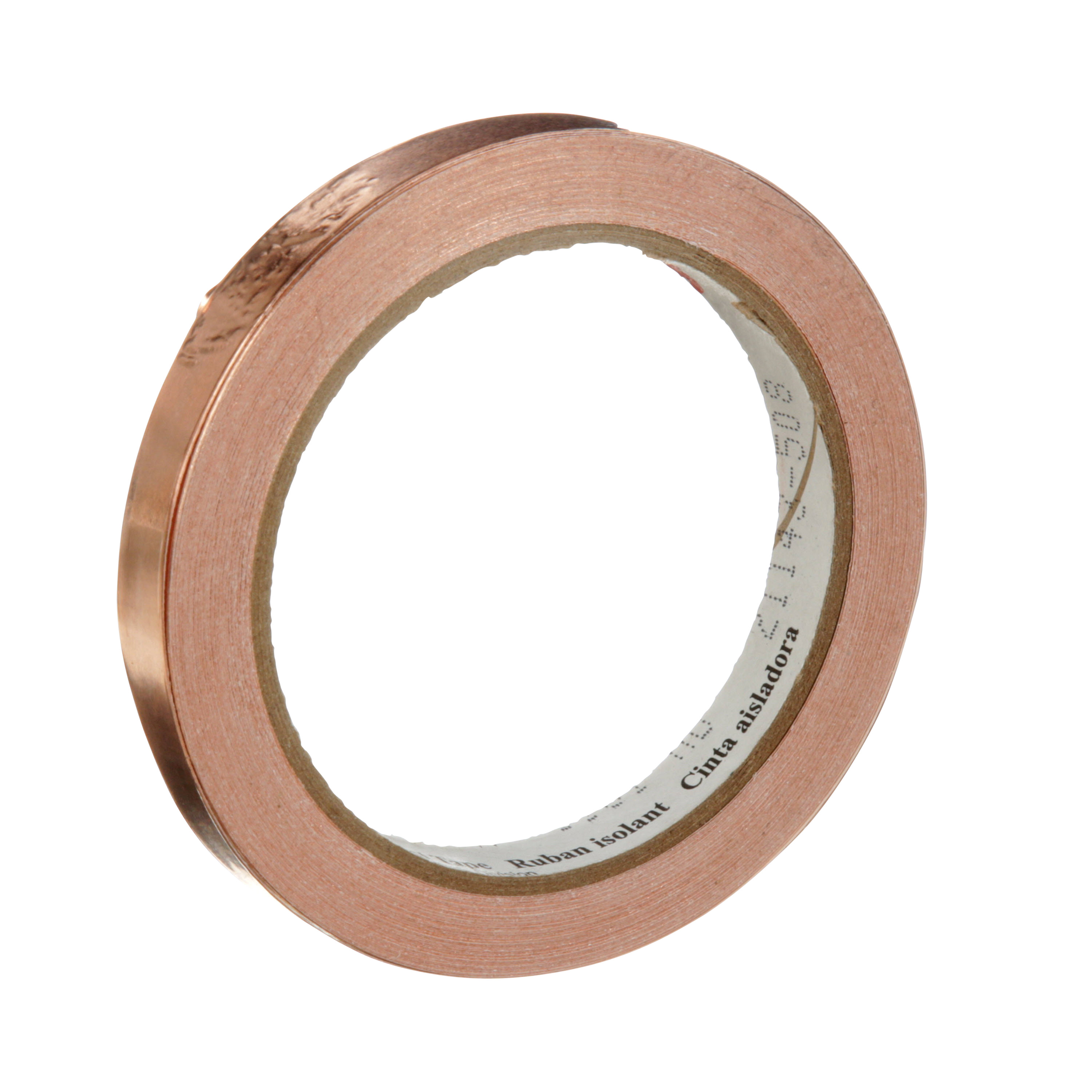

3M Copper Foil EMI Shielding Tape 1181 is a conductive adhesive shielding tape that is designed for applications that require reliable, point to point electrical contact. It comes on a removable liner for easy die cutting and handling. The tape is rated for 600V dry applications.
- Multipurpose: Can be used for EMI/RFI shielding applications and for static charge draining, seaming shielded rooms, cable wrapping and surface contact to non-solderable materials
- VERSATILE: Used for a wide variety of electrical design and test laboratories for prototyping and troubleshooting purposes
- NO ADDITIONAL TOOLS NEEDED: No heat, moisture or other preparation is needed to apply adhesive
- COMPLIANCE: UL510A Standard, Category OARC2, File No. E17385
- STABILITY: 5-year shelf life (from date of manufacture)
- COMPLIANCE INFORMATION: For more compliance information, visit www.3m.com/regs
Product Dimensions |
Imperial | Metric |
Weight | 0 NULL | |
---|---|---|
Width | 0 null | |
Length | 0 null | |
Height | 0 null |
Shipping Dimensions |
|
Weight | 5.02654 lb |
---|---|
Length | 8.38583 in |
Width | 8.38583 in |
Height | 10.59055 in |
Color | Copper |
---|
PRODUCT FAQ
-
What is the 3M™ EMI Copper Foil Shielding Tape 1181 used for?
The 3M™ EMI Copper Foil Shielding Tape 1181 is mainly used to shield components and devices from electromagnetic interference (EMI)
-
How wide is the tape, and how long does it come in a roll?
The tape is half an inch (12.70 mm) wide and comes in rolls that are about 18 yards (16.5 m) long.
-
Is it easy to apply and cut to size for different applications?
Yes, the copper foil shielding tape adhesive backing makes application onto most surfaces quick and easy while its pliability allow cutting or slitting to accommodate various shapes or sizes needed
-
; Can this product be applied on curved surfaces as well ?
: Yes, it works perfectly fine on curved surfaces like connecters too..
-
Q: Is there a minimum order quantity required when ordering the product packaging by case?
A : Yes , you would need atleast an order of 18 rolls per case ordered at once.
3M™ EMI Shielding Tape 1181 is a high-quality tape that is designed to provide excellent EMI shielding and grounding for equipment, components, and shielded rooms. The tape features a deadsoft, copper foil backing that offers exceptional resistance against oxidation and discoloration. The pressure-sensitive, electrically conductive, acrylic adhesive ensures firm adherence to the substrate.
The conductive particles in the adhesive provide low resistance between the substrate and the backing, making it an ideal choice for EMI shielding applications. The tape is also flame retardant, making it safe to use in a variety of settings.
The 3M™ EMI Shielding Tape 1181 is UL Listed and RoHS 2011/65/EU Compliant, ensuring that it meets the highest standards of quality and safety. Whether you are looking to shield sensitive equipment or create a shielded room, this tape is an excellent choice.
- Deadsoft, copper foil backing
- Pressure sensitive, electrically conductive, acrylic adhesive
- Excellent resistance against oxidation and discoloration
- Low resistance between substrate and backing
- Flame retardant
- UL Listed and RoHS 2011/65/EU Compliant
