3M™ Dual Lock™ Reclosable Fastener SJ3767, Stem Density 400, Black, 15 in, 1000 Piece/Case. Die Cut
$0.57 / Each
| SKU | 7000051958 |
|---|---|
| Legacy SKU | 70070573962 |
| UPC | 00021200327988 |
| Product Number | SJ3767 |

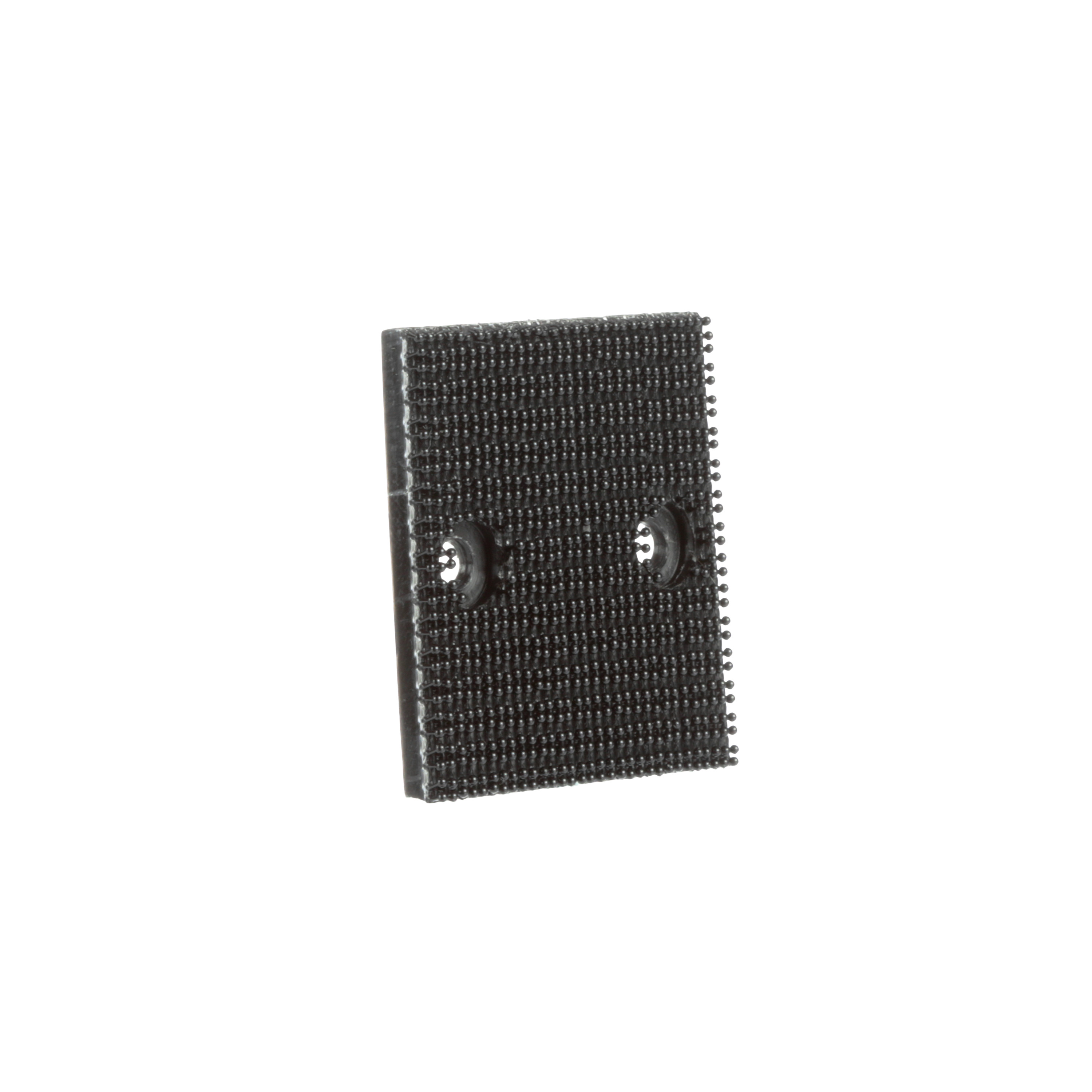

3M Dual Lock Reclosable Fastener SJ3767 Die-Cut Piece Part is a 38mm square, reclosable fastener with a rigid polypropylene backing and two counter-sunk hole for screws or rivets. It has a stem density of 400 stems per square inch. The mushroom-shaped stems interlock to supply very high tensile strength and replace mechanical fasteners in many applications.
- Interlocking mushroom-shaped stems snap together to form a strong, fast and easy attachment
- Die-cut base incorporates counter-sunk holes for attachment using screws or rivets
- Secures with an audible snap for closure verification
- Resistant to high temperature and solvents, ideal for automotive applications
- Strong holding power reduces the rattling and vibration of components
- Does not require special tools or processing equipment for installation
Product Dimensions |
Imperial | Metric |
| Weight | 0 NULL | |
|---|---|---|
| Width | 0 null | |
| Length | 0 null | |
| Height | 0 null |
Shipping Dimensions |
|
| Weight | 10.99886 lb |
|---|---|
| Length | 15.3937 in |
| Width | 11.25984 in |
| Height | 11.49606 in |
| Color | Black |
|---|
PRODUCT FAQ
-
What is the maximum load capacity of 3M™ Dual Lock™ Reclosable Fastener SJ3767?
The SJ3767 reclosable fastener has a high stem density (400) and can hold up to 5x the weight of typical hook-and-loop fasteners.
-
Can I reuse this product after it has been removed?
Yes! This reclosable fastener can be opened and closed over 1,000 times without losing holding strength.
-
How do I install this on my project surface?
The SJ3767 reclosable fastener can be attached with adhesive or sewn onto surfaces using conventional sewing machines. For best results, the target surface should be clean, dry, and free of any oils or debris prior to application.
Convenient Assembly and Re-Assembly for Automotive Trim
Ideal for attaching automotive trim components, our 3M™ Dual Lock™ Reclosable Fastener SJ3767 Die-Cut Piece Part provides a high-strength closure that is easy to assemble and just as easy to open and reclose in high cycle applications. Moreover, the pieces audibly snap together with a satisfying click to form a secure, dependable and repeatable attachment.
Designed with hundreds of interlocking mushroom-shaped stems, this polypropylene fastener can replace conventional attachments such as screws or adhesives, which can be time-consuming to fit and assemble, may weaken the part, or are susceptible to vibration and weather extremes. Dual Lock fasteners are constructed with polyolefin stems and hold tight regardless of high heat, cold, moisture or humidity. These fasteners are also an excellent attachment solution when vibration is an issue – not only do the fasteners hold tight, but actually reduce vibration and rattling.
Additional Features include:
- Quick attachment to second fastener with no drilling or special tools required
- Hidden attachment avoids unsightly mechanical fasteners on the show surface
- High temperature and solvent resistance
- Mushroom heads that allow flexibility in alignment for easy attachment of components
- Can be used to attach components before they enter the final assembly plant, helping reduce the number of parts and the length of assembly time
- Combinations of stem densities and the engaged area provide adjustable and proportional engagement and disengagement forces
- An audible snap confirms that the part is correctly installed with minimal insertion force required by the assembly worker
How It Works
This die-cut fastener is designed to be screwed or riveted to a base where attachment is desired. It is supplied with two counter sunk holes for easy attachment using pan-head screws, pop-in rivets, or an ultrasonically stacked post. The head of the screw or rivet must be recessed below the bottom of the mushroom stems to allow proper engagement of the mushroom heads.
The fastener has a rigid polypropylene backing that holds firm to the base through many openings and closings. The die-cut piece can be snapped to a second Dual Lock fastener attached to another part – forming a secure, dependable and repeatable attachment.
When two pieces of 3M™ Dual Lock™ Reclosable Fasteners are pressed together, the stems flex and the mushroom heads slide past each other. After passing the opposing mating piece, the stems snap back into their original position and the opposing mushroom heads interlock. These fasteners can provide high tensile strength but can be opened by simply cleaving or peeling open the closure.
Alignment and re-alignment are easy and no special tools are required for installation. This means that these fasteners can be used to attach components before they enter the final assembly plant, thus helping to reduce the number of parts and the length of assembly time.
Stem Densities
3M™ Dual Lock™ Reclosable Fasteners allow customers to combine different stem densities and engaged areas to create adjustable and proportional engagement and disengagement forces to suit their application. Dual Lock fasteners are offered in three different densities (stems per square inch): 170, 250, and 400. Dual Lock fastener SJ3767 has 400 stems per square inch (25mm), offering the tightest hold, and can be mated to Type 170 or 250. It should not be mated with another Type 400 fastener because the holding force would be so tight that detachment would likely result in damage to the parts.
Applications
3M™ Dual Lock™ Reclosable Fasteners can replace conventional mechanical fasteners in a wide range of assembly and attachment applications where reclosability or serviceability is desired. Dual Lock fasteners are used primarily to secure rigid and semi-rigid surfaces such as trim or door panels, instrument panel bezels, headliners, and other automotive interior and exterior trim. Some examples of applications include:
- Headliners
- Trunk liners
- Door panels
- Toll transponders
- Vehicle headliners
- Sunroofs
- Interior lighting
- Window and door trim
- Vibration and sound dampening control
- CHMSL – Center Height Mount Stop Lamp – cover plates
- Center console flanges
3M Science Delivers Closures You Can Count On
3M™ Dual Lock™ Reclosable Fasteners are ideal for many applications where a high strength, reclosable fastening system is required. 3M engineers have uniquely combined physics and materials science to bring the automotive industry reliable fasteners that supply high performance even after exposure to high moisture levels and wide temperature ranges. For applications that require a die-cut piece and multiple closures, look no further than the long-lasting durability of 3M™ Dual Lock™ Reclosable Fastener SJ3267 Die-Cut Piece Part. It is yet another outstanding example of how 3M technologies advance operations in the automotive industry, providing both ease of use and superior results.
