SKU | 7000006375 |
---|---|
Legacy SKU | 98040052627 |
UPC | 00051115083808 |
Catalog Number | ULTRA-PPD3 |
Product Number | ULTRA PPD |

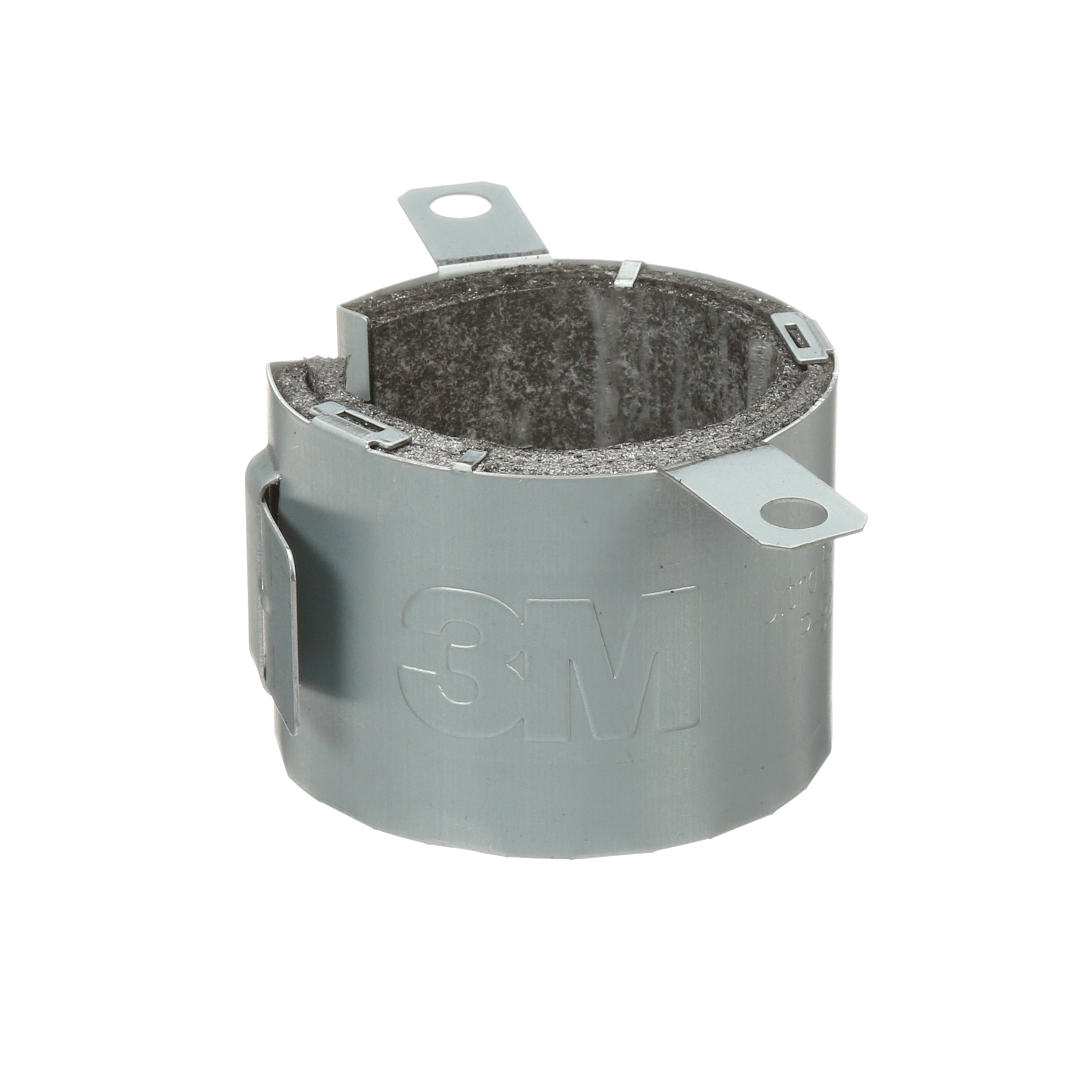

The 3M Fire Barrier Plastic Pipe Device is a one piece metal collar assembly encasing 3M's heat-expanding 3M Fire Barrier Ultra GS material. Used to firestop up to nominal 6" diameter non-metallic pipes, cables and combos in new and retrofit installations. Achieves up to 3-hour fire protection in tested and listed systems.
- TESTED FIRESTOP PERFORMANCE: Tested for through penetration applications up to 3-hours in accordance with ASTM E814 (UL 1479) and CAN/ULC-S115
- SPECIFICALLY DESIGNED: For installing firestop around 3” non-metallic pipe penetrations
- ULTRA-FAST ANCHORING SYSTEM: One-piece metal construction requires no assembly
- EASY INSTALL METAL TABS: Easy anchoring tabs let installers anchor penetrations to slabs quickly and permanently
- PERMANENT AND STRUCTURAL: Permanent fixed firestop also contributes to the structural stability of the penetration
Product Dimensions |
Imperial | Metric |
Weight | 0.647 lbs | |
---|---|---|
Width | 7.09843 in | |
Length | 2.35 in | |
Height | 7.4 in | |
Diameter | 3 in | 76 mm |
Shipping Dimensions |
|
Weight | 7.50013 lb |
---|---|
Length | 22.40157 in |
Width | 7.40157 in |
Height | 7.79528 in |
Color | Silver |
---|
PRODUCT FAQ
-
What is 3M™ Fire Barrier Ultra Plastic Pipe Device ULTRA-PPD3 used for?
The 3M™ Fire Barrier Ultra Plastic Pipe Device ULTRA-PPD3 is a firestop device that surrounds plastic pipes, preventing the spread of flames and smoke in case of a fire. It's specifically designed to be used in penetrations through fire-rated floors or walls.
-
Can the 3M™ Fire Barrier Ultra Plastic Pipe Device ULTRA-PPD3 be reused after being exposed to fire?
No, once a ULTRA-PPD device has been exposed to high temperatures during a fire event it should not be re-installed.
-
How many devices are included per package of 3M™ Fire Barrier Ultra Plastic Pipe Device ULTRA-PPD3?
Each package contains ten (10) devices with nominal pipe size of 79mm implemented over Type CPVC piping up to maximum diameter Ø114 mm fitting like elbow/tees etc., commonly found plumbing applications.
The 3M™ Fire Barrier Plastic Pipe Device
The 3M™ Fire Barrier Plastic Pipe Device is a one piece metal collar assembly encasing 3M's heat-expanding 3M™ Fire Barrier Ultra GS material. It is designed to firestop up to nominal 3" diameter non-metallic pipes, cables, and combos in both new and retrofit installations.
This product has been tested and listed, achieving up to 3-hour fire protection in various systems. It provides reliable firestop capabilities, ensuring the safety of your installations.
Key Features:
- One piece metal collar assembly
- Encases 3M's heat-expanding 3M™ Fire Barrier Ultra GS material
- Firestops up to nominal 3" diameter non-metallic pipes, cables, and combos
- Suitable for new and retrofit installations
- Achieves up to 3-hour fire protection in tested and listed systems
